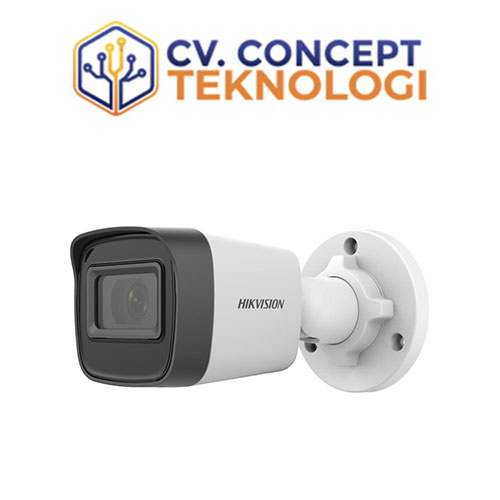

DS-2CD1021G0-I(2.8mm)

Data Sheet DS-2CD1021G0-I(2.8mm) : Download

Camera

• Image Sensor 1/2.9″ Progressive Scan CMOS
• Max. Resolution 1920 × 1080
• Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV 2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
• Lens Mount M12
• Iris Type Fixed
• Aperture F2.2

DORI

• DORI 2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 20 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR, VBR

Network

• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• API ISAPI, SDK
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
• User/Host Up to 32 users 3 user levels: administrator, operator, and user
• Client iVMS-4200
• Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Wide Dynamic Range (WDR) Digital WDR
• SNR ≥ 52 dB
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event Motion detection, exception
• Linkage Notify surveillance center

General

• Power 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material Plastic
• Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.5″ × 2.4″ × 2.3″)
• Package Dimension 163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
• Weight Approx. 175 g (0.4 lb.)
• With Package Weight Approx. 250 g (1.1 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language English, Ukrainian
• General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection IP67: IEC 60529-2013
