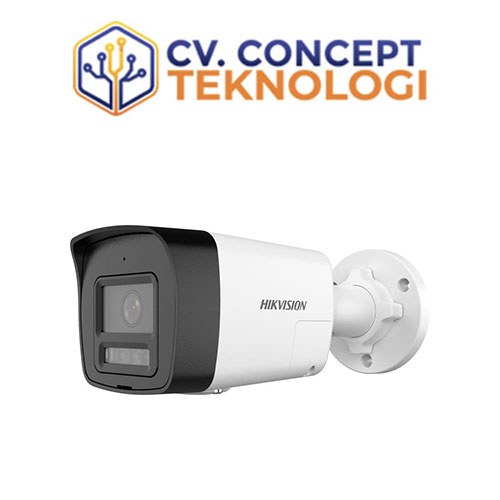

DS-2CD1041G2-LIUF/SL

Camera

Lens

Lens Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
Lens mount M12
Iris Type Fixed
Opening F2.2
Depth of Field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞

DORI

DORI 2.8 mm, D: 53 m, W: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, W: 26 m, R: 13 m, I: 6 m

Illuminator

Video

Main stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-stream 50Hz: 25fps (1280×720，640×480, 640×360) 60Hz: 24fps (1280×720，640×480, 640×360)
Video compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video bitrate 32 Kbps to 8 Mbps
H.264 type Baseline Profile,Main Profile,High Profile
Type H.265 Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream

Audio

Grid

Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous live view Up to 6 channels
User/operator Up to 32 users 3 user levels: administrator, operator, and user
Customer iVMS-4200,Hik-Connect
Web browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11


Image settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Privacy Mask 1 programmable polygon privacy mask
Day/night switch Day, Night, Auto, Schedule
Image enhancement BLC,HLC,3D DNR

Interface

Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in microphone Yes, 1 built-in microphone
Built-in speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key Forks

Event

Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
Linkage Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

General

Feeding 12 VDC ± 25%, 0.62 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9W
Material Plastic
Dimension 179mm × 67.4mm × 69.1mm (7.1″ × 2.7″ × 2.7″)
Package Dimension 216mm × 121mm × 118mm (8.5″ × 4.8″ × 4.6″) Approx. 270 g (0.6 lb.)
With package weight Approx. 475 g (1.0 lb.)
Storage conditions -30°C to 45°C (-22°F to 113°F). Humidity 95% or less (non-condensing)
Starting and operating conditions -30°C to 45°C (-22°F to 113°F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General function Heartbeat, anti-banding, mirror, password protection, password reset via email
Flashing light White Light

Certifications

EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
Security CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Atmosphere CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
