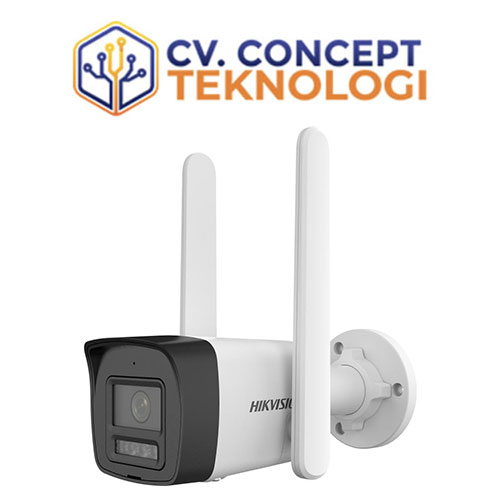

DS-2CD1043G2-LIDUF/4G/SL

Camera

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
Lens Mount M12
Iris Type Fixed
Aperture F2.2

DORI

DORI 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

Illuminator

Video

Main Stream 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 20 fps (768 x 432) 60 Hz: 20 fps (768 x 432)
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region for main stream
Scalable Video Coding (SVC) H.264 and H.265 encoding

Audio

Network

Security Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication


Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key Yes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

General

Power 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
Material Plastic Dimension 238.5 mm × 97.6 mm × 67.4 mm (9.39″ × 3.84″ × 2.65″)
Package Dimension 530 mm × 524 mm × 325 mm (8.5″ × 4.8″ × 4.6″)
Weight Approx. 380 g (0.84 lb.)
With Package Weight Approx. 722 g (1.59 lb.)
Storage Conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
Flashing Light Yes, White Light

Approval

EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130 4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environmen CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
