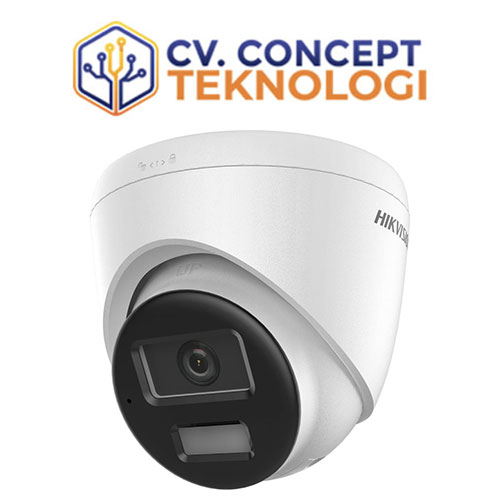

DS-2CD1321G2-LIUF/SL

Camera

Lens

Lens Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens mount M12
Iris Type Fixed
Opening F2.2

DORI

DORI 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Video

Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50Hz: 25fps (640×480, 640×360) 60Hz: 30fps (640×480, 640×360)
Video compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video bitrate 32 Kbps to 8 Mbps
H.264 type Baseline Profile,Main Profile,High Profile
Type H.265 Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream

Audio

Grid

Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP,NTP, IGMP, IPv4, IPv6, UDP, QoS
API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous live view Up to 6 channels
User/operator Up to 32 users 3 user levels: administrator, operator, and user
Customer iVMS-4200,Hik-Connect
Web browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/night switch Day, Night, Auto, Schedule
Image enhancement BLC,HLC,3D DNR
Image settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 1 programmable polygon privacy mask

Interface

Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in microphone Yes, 1 built-in microphone
Built-in speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset Key Forks

Event

Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
Linkage Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

General

Feeding 12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5W
Material Metal & Plastic
Dimension Ø110mm × 102.7mm (Ø4.33″ × 4.04″)
Package Dimension 150mm × 150mm × 141mm (5.9″ × 5.9″ × 5.6″) Approx. 365 g (0.7 lb.)
With package weight Approx. 608 g (1.2 lb.)
Storage conditions -30°C to 45°C (-22°F to 113°F). Humidity 95% or less (non-condensing)
Starting and operating conditions -30°C to 45°C (-22°F to 113°F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General function Heartbeat,anti-banding,mirror,password protection,password reset via email
Flashing light White Light

Certifications

EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
Security CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Atmosphere CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
