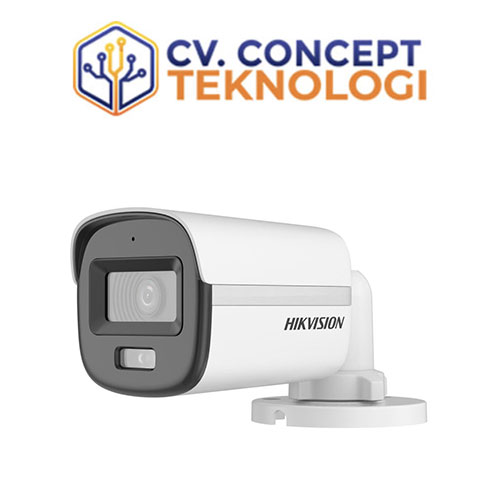

DS-2CE10KF0T-PFS (2.8mm)

Data Sheet DS-2CE10KF0T-PFS (2.8mm) : Download

Camera

• Image Sensor 3K CMOS
• Signal System PAL/NTSC
• Max. Resolution 2960 (H) × 1665 (V)
• Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night 24/7 Color Imaging
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

• Lens Type 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
• Lens Mount M12

Illuminator

• Supplement Light Type White Light
• Supplement Light Range Up to 20 m


• Frame Rate TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC
• Wide Dynamic Range (WDR) Digital WDR
• Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
• Day/Night Mode Color
• White Balance Auto/Outdoor/Global/Manual
• Image Enhancement DWDR, BLC, HLC, Global, HLS
• Noise Reduction 2D DNR
• Image Settings Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS
• Alarm Solid Light Alarm (White Light)
• Audio Built-in mic

General

• Language English
• Operating Condition -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Material Plastic
• Communication HIKVISION-C
• Dimension 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Weight Approx. 238 g (0.52 lb.)
• Power 12 VDC ± 25%, Max. 2.5 W,
  *You are recommended to use one power adapter to supply the power for one camera.

Approval

• Protection IP67
