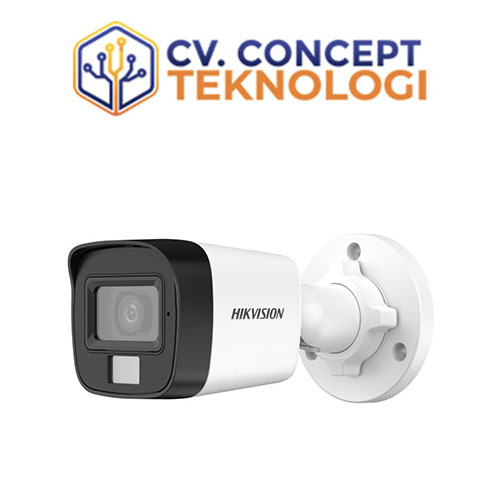

DS-2CE16K0T-LPFS (2.8mm)

Data Sheet DS-2CE16K0T-LPFS (2.8mm) : Download

Camera

• Image Sensor 3K CMOS
• Max. Resolution 2960 (H) × 1665 (V)
• Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
• Lens Mount M12

Microphone

• Pickup Distance In a radius of 5 m
• Amount 1

Illuminator

• Supplement Light Range
• IR : Up to 25 m White Light : Up to 20 m
• Supplement Light Type Smart,IR,White Light


• Image Settings Brightness, Sharpness, Smart IR
• Frame Rate TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
• Day/Night Mode Auto/Color
• Wide Dynamic Range (WDR) Digital WDR
• Image Enhancement DWDR/BLC/HLC/Global
• White Balance Auto/Manual
• AGC Yes

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material Plastic
• Dimension 138.8 mm × Ø 70 mm (5.47″ × Ø 2.76″)
• Weight Approx. 160 g (0.35 lb.)
• Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Language English
• Power Supply 12 VDC ± 25%
  *You are recommended to use one power adapter to supply the power for one
  camera.
• Consumption Max. 2.9 W

Approval

• Protection IP67
