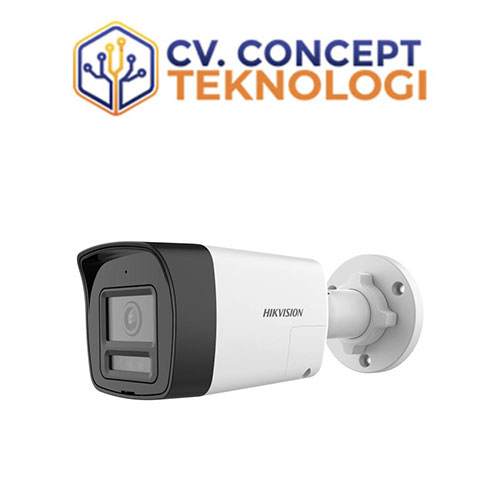

DS-2CE16K0T-LPTS
3K Two Way Audio Fixed Mini Bullet
- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m white light and 25 m IR distance for bright night imaging
- Smart-Hybrid Light, optimize your security with flexible lighting options
- High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
- Provide real-time communication via built-in two-way audio
- Water and dust resistant (IP67)
Description
Data Sheet DS-2CE16K0T-LPTS : Download
Camera
- Image Sensor 3K CMOS
- Max. Resolution 2960 (H) × 1665 (V)
- Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time PAL: 1/12.5 s to 1/50,000 s, NTSC: 1/15 s to 1/50,000 s
- Day & Night ICR
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
- Signal System PAL/NTSC
Lens
- Lens Type 2.8 mm, 3.6 mm fixed lens
- Focal Length & FOV 2.8 mm, horizontal FOV: 112°, vertical FOV: 62°, diagonal FOV: 131°; 3.6 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 112°
- Lens Mount M12
Microphone
- Pickup Distance In a radius of up to 5 m
- Amount 1
Speaker
- Rated Power 2 W
- Speaker Range In a radius of up to 5 m
Illuminator
- Supplement Light Type Smart, IR, White Light
- Supplement Light Range IR: Up to 25 m, White Light: Up to 20 m
- Image Settings Anti-banding, Brightness, Sharpness, Smart IR
- Frame Rate TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps
- Day/Night Mode Auto/Color
- Wide Dynamic Range (WDR) Digital WDR
- Image Enhancement DWDR, BLC, HLC, Global, HLS
- Noise Reduction 2D DNR
- White Balance Auto, Manual
Audio
- Audio Function Echo Cancellation, AI Noise Reduction, Automatic Gain Control
Interface
- Video Output 1 HD analog output
