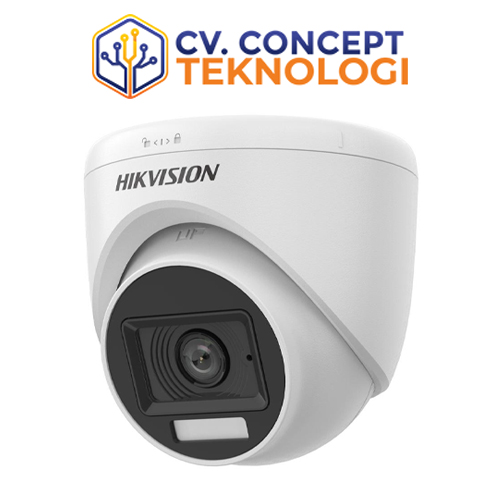

DS-2CE76D0T-EXLPF

Data Sheet  DS-2CE76D0T-EXLPF : Download

Camera

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Min. Illumination : 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night : ICR
• Angle AdjustmentPan : 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
• Signal System : PAL/NTSC

Lensa

• Lens Type : 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV : 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
  3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
• Lens Mount : M12

Illuminator

• Supplement Light Type : Smart,IR,White Light
• Supplement Light Range : IR : Up to 20 m  White Light : Up to 20 m


• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings : Brightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 1080p @ 30 fps, 1080p @ 25 fps

  CVI: 1080p @ 30 fps, 1080p @ 25 fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement : DWDR/BLC/HLC/Global
• White Balance : Auto/Manual
• AGC : Yes

Interface

• Video Output Switchable :  TVI/AHD/CVI/CVBS

General

• MaterialPlasticDimension : Ø70 mm × 138.8 mm (Ø2.76″ x 5.46″)
• Weight Max :  150 g (0.33 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• Communication : HIKVISION-C
• Language : English
• Power Supply : 12 VDC ± 25%, Max. 3.2 W

  *Anda disarankan menggunakan satu adaptor daya untuk memasok daya ke satu kamera.

Approval

• Protection : IP67
