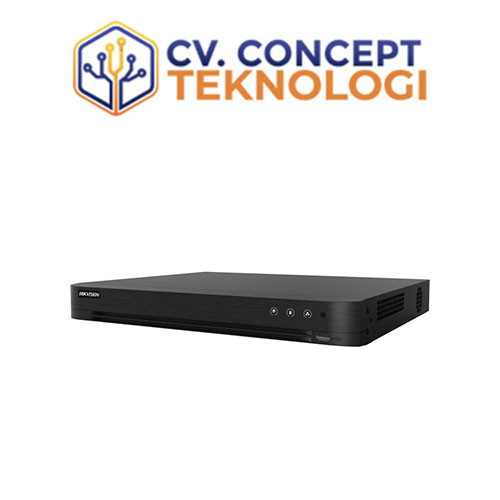

iDS-7216HQHI-M2/S

Data Sheet iDS-7216HQHI-M2/S : Download

Motion Detection 2.0

• Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis Up to 4-ch

Facial Detection

• Facial Detection and Capture Face picture detection, face picture search

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bitrate 32 Kbps to 6 Mbps
• Dual-stream Support
• Stream Type Video, Video & Audio
• Audio Compression G.711u
• Audio Bitrate 64 Kbps

Video and Audio

• IP Video Input 2-ch (up to 18-ch)
  Up to 6 MP resolution Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps ;Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode HDMI/VGA simultaneous output
• CVBS Input PAL/NTSC CVBS Output
  1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous playback 16-ch
• HDTVI Input 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input 5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Total Bandwidth 128 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
  ONVIF
• Remote Connection 128
• Network Interface 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• SATA 2 SATA interface
• Capacity Up to 10 TB capacity for each disk
• Serial Interface RS-485 (half-duplex)
• USB Interface 1 × USB 2.0；1 × USB 3.0
• Alarm In/Out N/A

General

• Power Supply 12 VDC
• Consumption ≤ 40 W
• Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight ≤ 2 kg (4.4 lb)
