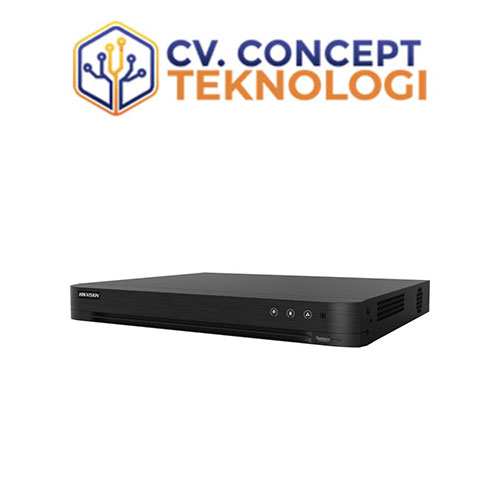

iDS-7216HUHI-M2/S

Data Sheet iDS-7216HUHI-M2/S : Download

Motion Detection 2.0

• Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis Up to 4-ch

Facial Detection

• Facial Detection and Capture Face picture detection, face picture search

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video Bitrate 32 Kbps to 10 Mbps
• Dual-stream Support
• Stream Type Video, Video & Audio
• Audio Compression G.711u
• Audio Bitrate 64 Kbps

Video and Audio

• IP Video Input 8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
  1280 × 720/60Hz HDMI/VGA simultaneous output
• VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
• CVBS Input PAL/NTSC
• CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous playback 16-ch
• HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@3  fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Audio Input 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ) 16-ch via coaxial cable
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Network

• Total Bandwidth 128Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection 128
• Network Interface 1, RJ45 10/100/1000 Mbps self adaptive Ethernet interface
• Wi-Fi Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA 2 SATA interfaces
• Capacity Up to 10 TB capacity for each disk
• Serial Interface RS-485 (half-duplex)
• USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
• Alarm In/Out N/A (optional to support)

General

• Power Supply 12 VDC, 5 A
• Consumption ≤ 19 W
• Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight ≤ 2.1 kg (4.6 lb)
