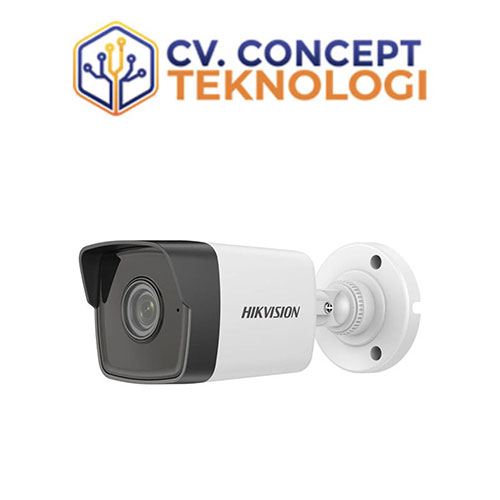

DS-2CD1041G2-LIU(2.8mm)

Data Sheet DS-2CD1041G2-LIU(2.8mm) : Download

Camera

• Image Sensor 1/2.8″ Progressive Scan CMOS
• Max. Resolution 2560 × 1440
• Shutter Time 1/3 s to 1/100,000 s
• Min. Illumination Color: 0.002 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
• Lens Mount M12
• Iris Type Fixed
• Aperture F2.0
• Depth of Field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞

DORI

• DORI 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

Illuminator

• Supplement Light Type IR, White Light
• Supplement Light Range IR: up to 40 m White Light: up to 15 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEGVideo Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR, VBR
• Region of Interest (ROI) 1 fixed region for main stream

Audio

• Audio Type Mono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate 8 kHz/16 kHz
• Audio Compression G.711ulaw/AAC-LC
• Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps(AAC-LC)

Network

• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
• API ONVIF (Profile S, Profile T), ISAPI, SDK
• Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• User/Host Up to 32 users 3 user levels: administrator, operator, and user
• Client iVMS-4200, Hik-Connect
• Web Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11


• Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Wide Dynamic Range (WDR) Digital WDR
• SNR ≥ 52 dB
• Privacy Mask 1 programmable polygon privacy mask
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone Yes, 1 built-in microphone

Event

• Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
• Linkage Send email, notify surveillance center, trigger capture

General

• Power 12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
• Material Plastic
• Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.5″ × 2.4″ × 2.3″)
• Package Dimension 163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
• Weight Approx. 175 g (0.4 lb.)
• With Package Weight Approx. 250 g (0.55 lb.)
• Storage Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
• Language English, Ukrainian
• General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
• Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection IP67: IEC 60529-2013
