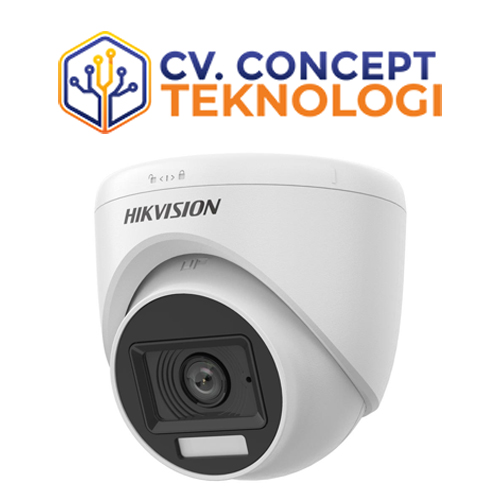

DS-2CE76D0T-LPFS

Data Sheet Download : DS-2CE76D0T-LPFS

Camera

• Image Sensor :2 MP CMOS
• Max. Resolution :1920 (H) × 1080 (V)
• Min. Illumination : 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night :ICR
• Angle AdjustmentPan : 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
• Signal System :PAL/NTSC

Lensa

• Lens Type :2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV :2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
  3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
• Lens Mount :M12

Microphone

• Pickup Distance :In a radius of up to 5 m
• Amount :1

Illuminator

• Supplement Light Type :Smart,IR,White Light
• Supplement Light Range :IR : Up to 20 m White Light : Up to 20 m


• Image Settings :Brightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 1080p @ 30 fps, 1080p @ 25 fps

  CVI: 1080p @ 30 fps, 1080p @ 25 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement :DWDR/BLC/HLC/Global
• White Balance :Auto/Manual
• AGC :Yes

Interface

• Video OutputSwitchable :  TVI/AHD/CVI/CVBS

General

• MaterialPlastic
• Dimension : 84.6 mm × Ø85.02 mm (3.33″ × Ø3.35″)
• WeightMax : Approx. 156 g (0.34 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication :HIKVISION-C
• Language :English
• Power Supply :12 VDC ± 25%, Max. 3.3 W

  *Anda disarankan menggunakan satu adaptor daya untuk memasok daya ke satu kamera.
