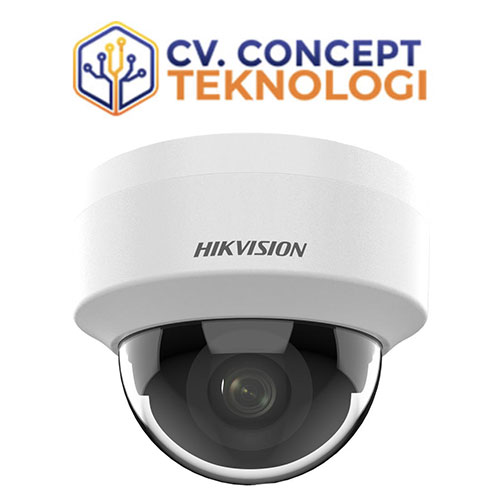

DS-2CD1121G0-I(2.8mm)

Data Sheet DS-2CD1121G0-I(2.8mm) : Download

Camera

• Image Sensor 1/2.9″ Progressive Scan CMOS
• Max. Resolution 1920 × 1080
• Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°

Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
• Lens Mount M12
• Iris Type Fixed
• Aperture F2.2
• Depth of Field 2.8 mm: 0.8 m to ∞ 4 mm: 1 m to ∞

DORI

• DORI 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 20 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile,Main Profile,High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR,VBR

Network

• Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• API ISAPI,SDK
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
• User/Host Up to 32 users 3 user levels: administrator, operator, and user
• Client iVMS-4200
• Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Wide Dynamic Range (WDR) Digital WDR
• SNR ≥ 52 dB
• Day/Night Switch Day,Night,Auto,Schedule
• Image Enhancement BLC,HLC,3D DNR
• Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event Motion detection,exception
• Linkage Notify surveillance center

General

• Power 12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material Plastic
• Dimension Ø110.8 mm × 85.2 mm (Ø4.36″ × 3.35″)
• Package Dimension 163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
• Weight Approx. 240 g (0.5 lb.) With Package
• Weight Approx. 380 g (0.8 lb.)
• Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Language English, Ukrainian
• General Function Heartbeat,mirror,password protection,password reset via email

Approval

• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
