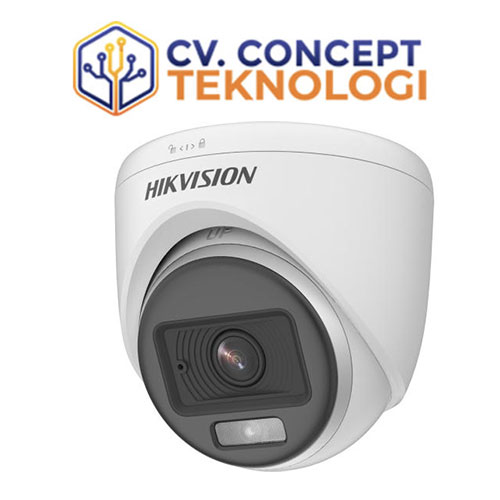

DS-2CE70KF0T-PFS (2.8mm)

Data Sheet DS-2CE70KF0T-PFS (2.8mm) : Download

Camera

• Image Sensor 3K CMOS
• Signal System PAL/NTSC
• Resolution 2960 (H) × 1665 (V)
• Frame Rate TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC
• Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens 2.8 mm, 3.6 mm fixed focal lens
• Field of View 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
• Lens Mount M12
• Light Alarm Solid Light Alarm (White Light)
• Day & Night 24/7 Color Imaging
• WDR (Wide Dynamic Range) Digital WDR
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


• White Light Auto/Off
• Image Mode STD/HIGH-SAT/HIGHLIGHT
• AGC Yes
• Day/Night Mode Color
• White Balance Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode DWDR,BLC,HLC,Global,HLS
• Noise Reduction 2D DNR
• Language English
• Function Brightness,Contrast,Mirror,Defective Pixel Correction,Sharpness,Anti-Banding,Smart Light

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS
• Audio In Built-in mic

General

• Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply 12 VDC ± 25%,
  *You are recommended to use one power adapter to supply the power for one camera.
• Consumption Max. 2.5 W
• Material Plastic
• White Light Range Up to 20 m
• Communication HIKVISION-C
• Dimension Φ 85.02 mm × 81.25 mm (Φ 3.35″ × 3.2″)
• Weight Approx. 165.5 g (0.36 lb.)
