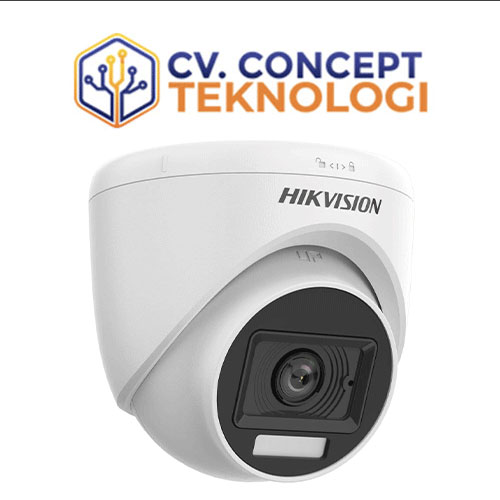

DS-2CE76K0T-EXLPF (2.8mm)

Data Sheet DS-2CE76K0T-EXLPF(2.8mm) : Download

Camera

• Image Sensor 3K CMOS
• Max. Resolution 2960 (H) × 1665 (V)
• Min. Illumination 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 64°, diagonal FOV: 125° 3.6 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 98°
• Lens Mount M12

Illuminator

• Supplement Light Range
• IR : Up to 20 m
• White Light : Up to 20 m
• Supplement Light Type Smart, IR, White Light


• Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
• Image Settings Brightness, Sharpness, Smart IR
• Frame Rate TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
• Day/Night Mode Auto/Color
• Wide Dynamic Range (WDR) Digital WDR
• Image Enhancement DWDR/BLC/HLC/HLS/Global
• White Balance Auto/Manual
• AGC Yes

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material Plastic
• Dimension Ø 85 mm × 84.6 mm (3.35” × 3.33”)
• Weight Max. 150 g (0.33 lb.)
• Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Language English
• Power Supply 12 VDC ± 25%, Max. 4.0 W
  *You are recommended to use one power adapter to supply the power for one
  camera.
