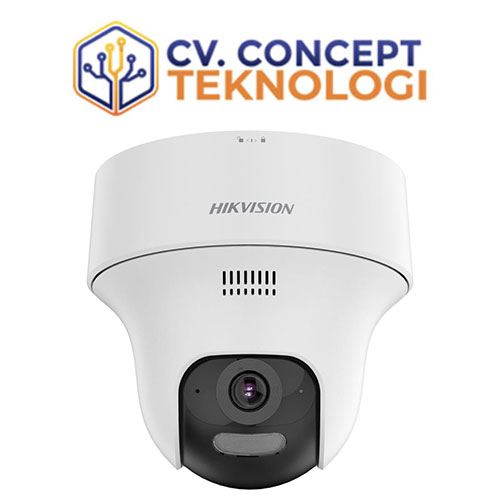

DS-2CV1F43G2-LIDWF(B)

Camera

Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR

Lens

Focal Length 2.8 mm 4 mm
FOV 4 mm: Horizontal field of view: 69.9°, vertical field of view: 34.9°, diagonal field of view: 84.9° 2.8 mm: Horizontal field of view: 91.1°, vertical field of view: 47.9°, diagonal field of view: 110.8°
Aperture 4mm: F1.6 2.8mm: F2.0

Illuminator

Supplement Light Type IR, White Light
Supplement Light Range IR distance: up to 20 m, White light distance: up to 15 m
IR Wavelength 850 nm

PTZ

Video

Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (768 x 432) 60 Hz: 30 fps (768 x 432)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile

Audio

Network

Protocols IPv4, IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, Hik Connect
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Password protection, complicated password, watermark, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, host authentication (MAC address), basic and digest authentication for HTTP/HTTPS
Client Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible

Wireless (Wi-Fi)

Wi-Fi Protocols IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax
Frequency Range 2.4 GHz to 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, 64QAM, 802.11n: BPSK, QPSK, 16QAM, 64QAM, 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Transfer Rate 11b: up to 11 Mbps, 11n: up to 150 Mbps, 11g: up to 54 Mbps, 11ax: up to 114 Mbps


Image Settings Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks

Interface

Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone 1 built-in microphone
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker 1 built-in speaker

Event

Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

General

Power 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug
Dimension Ø 124 mm × 119 mm (Ø 4.89″ × 4.68″)
Weight Weight: Approx. 290 g (0.6 lb.) With Package Weight:Approx. 390 g (0.8 lb.)
Material Plastic
Operating Condition -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
